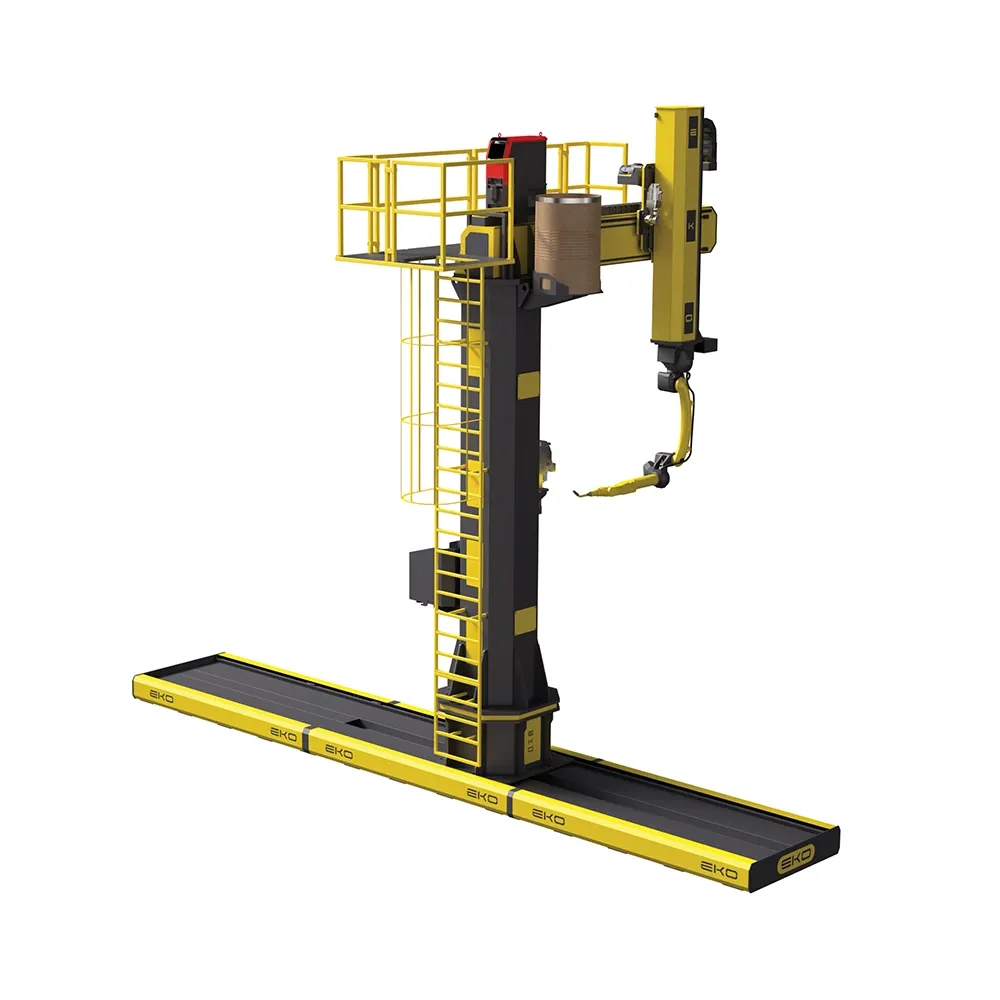

PZRS SERIES

Slider Z and Rotation Axis Pillar

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloidal gapless reducer
Full compatibility with different robot systems such as ABB, Fanuc, Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical data		PZRS-0150 HEAVY DUTY PILLAR GANTRY
L1		mm	2500
			3000
			3500
			4000
L2		mm	1050
Y AXES	STROKE (A)	mm	2000
			2500
			3000
	Max. payload	kg	2000
	Max. Speed	m / s	0,5
Z AXES	STROKE (B)	mm	1500
			2000
			2500
	Max. payload	kg	500
	Max. Speed	m / min.	30
X ( SLIDER) AXES	Max. Payload	kg	10.000
	X Module Lengths	m	3-6-9-38
	Max. Speed	m / min.	20
	Total lenght	mm	Stroke+ 1250
ROTARY AXES	Max. Payload	kg	10.000
	Stronge Range	deegre	-170
	Max. Speed	Rpm	5
Recommended Servo Motors	ABB, FANUC, KUKA ,MITSUBISHI, PANASONIC, SCHNEIDER, SIEMENS, YASKAWA
