Welding Machine Chassis Ground Connection
Welding machine chassis ground connection is a crucial step that ensures the completion of the electrical circuit during the welding process. If this connection is not made correctly, the arc becomes unstable and defects occur in the weld bead.
The welding machine chassis ground connection should be established by making direct contact with a clean surface of the workpiece using a sturdy clamp. Ensuring that the contact point is free of oxides, grease, and paint increases electrical conductivity. Additionally, keeping the cable short and robust minimizes energy loss. This practice yields more stable and higher-quality weld beads.
Considerations in practice:
How to Make the Welding Machine Chassis Ground Connection?
In industrial production processes, the correct and safe use of welding machines is of great importance. One of the most critical aspects in this process is selecting the proper grounding point for the chassis cable. If an appropriate contact surface is not chosen, the weld will be weakened and equipment failures may occur. Having metal surfaces that are clean and free of oxides is fundamental to ensure a solid electrical connection.
The answer to the question of how to connect the chassis ground lies in careful consideration of operator safety and weld quality. Routing the chassis cable by the shortest and most direct path to the workpiece ensures that the current can complete the circuit properly. The clamp or clip used during this connection must establish a secure contact.
Moreover, the welding machine’s grounding to earth should not be overlooked from a safety perspective. The grounding line prevents leakage currents in the equipment from harming the operator. According to the manufacturer’s instructions, the grounding cable must be connected to the control panel or site grounding line, and periodic checks should be performed.
A visual diagram of the clamp (chassis clamp connection scheme) helps operators understand the connection process. This diagram should be included in the equipment manual and reviewed before application.
Considerations for ground connection:
- The surface must be completely clean and free of paint and grease.
- The clamp or clip should grip the workpiece tightly.
- The cable length should be kept as short as possible.
- The contact point should not overheat.
Following these fundamental steps offers significant advantages in terms of operator safety and achieving high-quality weld results.
Regular inspection of the ground connection helps maintain weld quality over time. Issues such as oxidation on the clamp jaws or cable wear may arise over prolonged use. Therefore, establishing maintenance routines to replace connection equipment at specified intervals is essential. It should be remembered that a solid chassis ground connection is the foundation of a safe and efficient welding process.
Where to Attach the Welding Machine Chassis Cable?

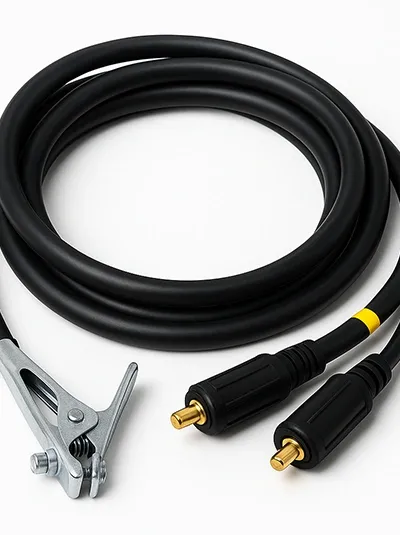

The welding machine chassis cable is typically attached to a metal surface that allows direct contact with the workpiece. This connection is necessary to close the electrical circuit and enable proper welding. The cable end is secured using a clamp or clip and should be placed as close as possible to the welding area.
How to Connect the Welding Machine Ground Polarity?
The polarity connection on welding machines can vary depending on the welding method used. Generally, the electrode is connected to the positive terminal (+) and the chassis to the negative terminal (-). However, in special applications requiring reverse polarity, this arrangement may be reversed. Always refer to the connection diagrams and the user manual on the machine.
To Which Terminal Is the Ground Connected on the Welding Machine?
On the welding machine, the ground is typically connected to the negative terminal because this terminal configuration is compatible with most electrodes. Correct terminal selection is important for arc stability and weld bead quality. Since this may vary by welding type, follow the manufacturer’s recommendations.
