SGA SERIES

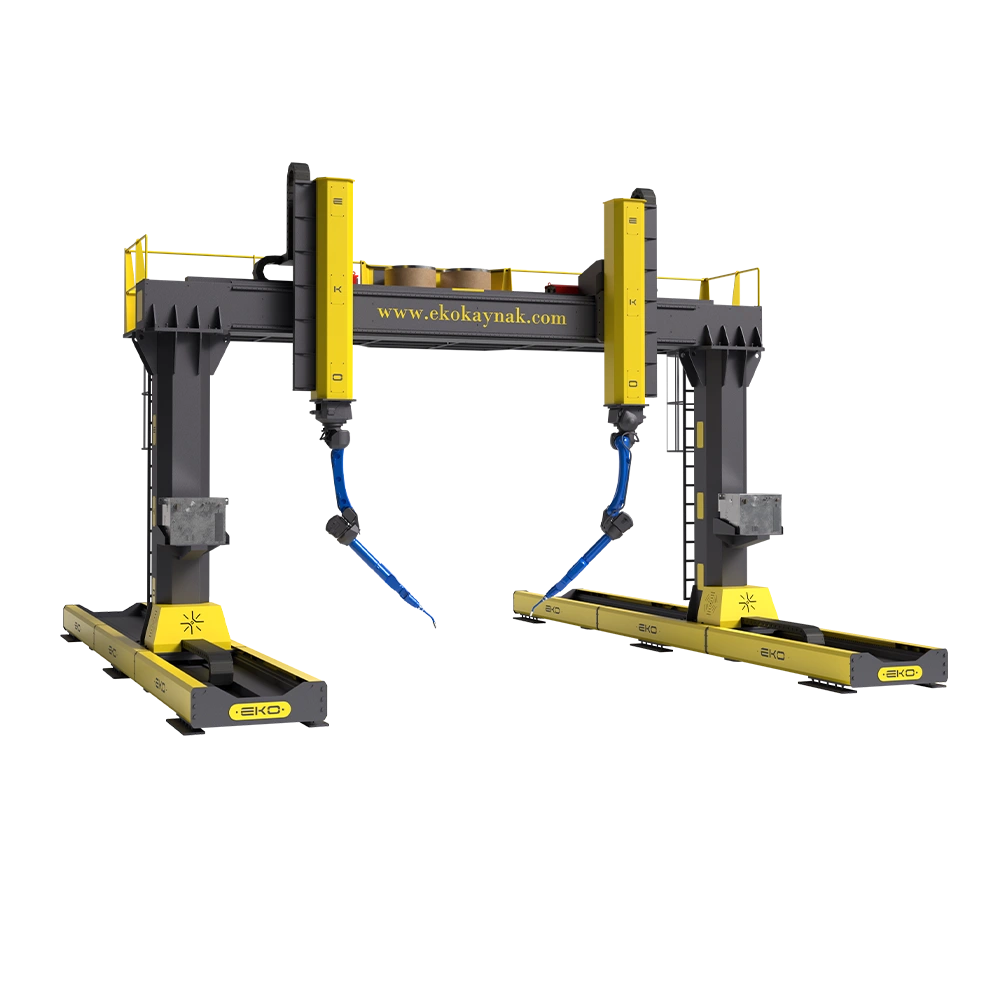

Slider Gantry (Alt)

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloidal gapless reducer
Full compatibility with different robot systems such as ABB, Fanuc, Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

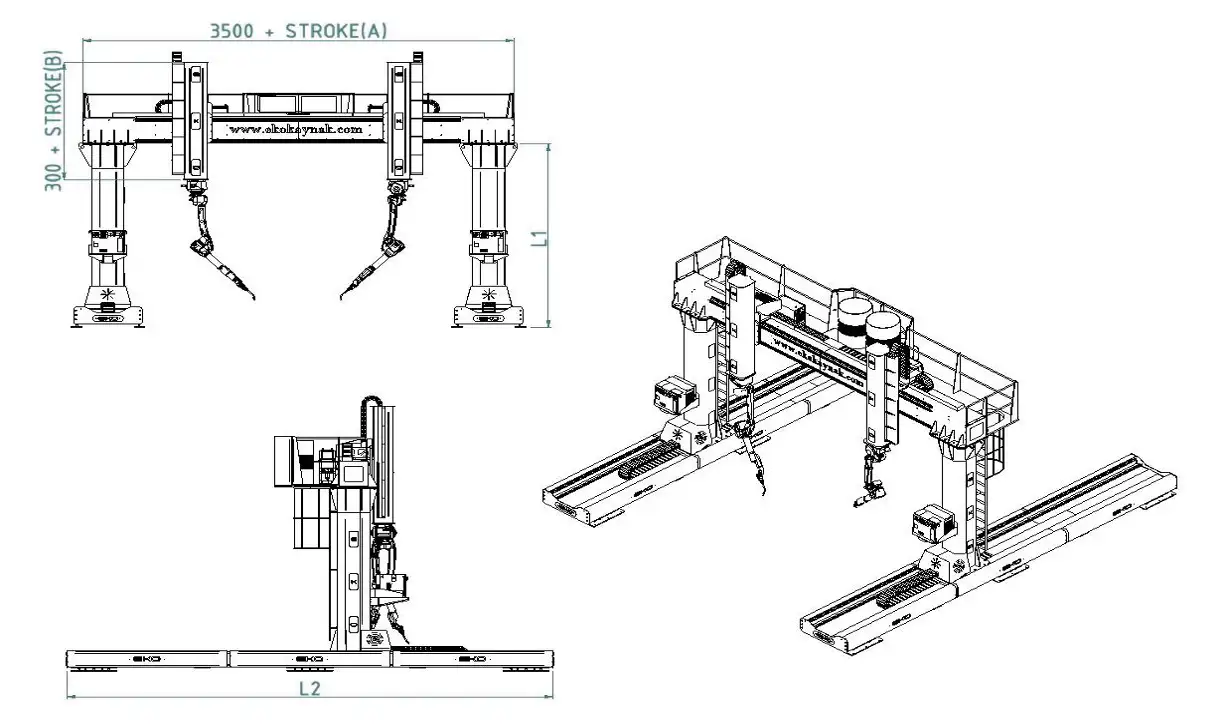

Technical data		SGA0 HEAVY DUTY PILLAR GANTRY
L1		mm	2800
			3300
			3800
			4300
L2		m	3-6-9-38
Y AXES	STROKE (A)	mm	3000
			4500
			6000
	Max. Payload	kg	2000
	Max. Speed	m / s	0,5
Z AXES	STROKE (B)	mm	1500
			2000
			2500
	Max. Payload	kg	500
	Max. Speed	m / min.	30
X ( SLIDER) AXES	Max. Payload	kg	10.000
	X Module Lengths	m	3-6-9-38
	Max. Speed	m / min.	20
	Total Lenght	mm	Stroke+ 1250
Recommended Servo Motors	ABB, FANUC, KUKA ,MITSUBISHI, PANASONIC, SCHNEIDER, SIEMENS, YASKAWA
