- Precise movement thanks to its robust and ergonomic body structure
- Use of cycloidal gapless reducer
- Full compatibility with different robot systems such as ABB, Fanuc, Kuka and Yaskawa
- Ease of use with external servo motor and PLC control
- Special manufacturing according to desired dimensions and weights according to customer demand
C SERIES

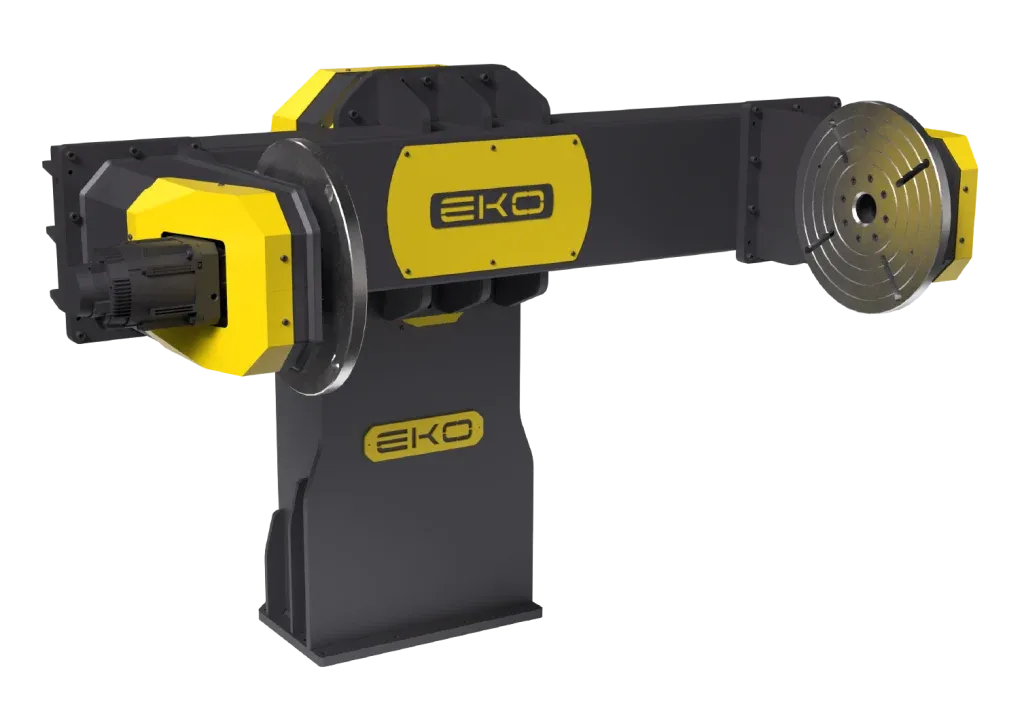

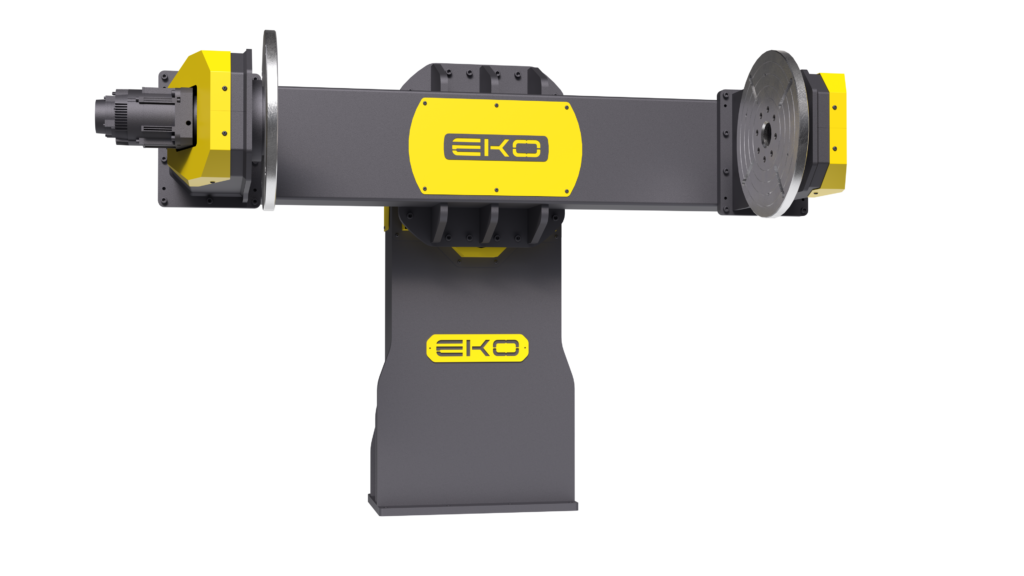

Dual Axis Positioner
Standard Features
Technical Information
Technical data | RPSC-0050 | RPSC-0100 | RPSC-0300 | RPSC-0500 | RPSC-1000 | |
Max. Payload | kg | 500 | 1000 | 3000 | 5000 | 10000 |
Height (H) | mm | 250 | 500 | 500 | 750 | 1000 |
Height (H1) | mm | 250 | 250 | 250 | 250 | 250 |
500 | 500 | 500 | 500 | 500 | ||
750 | 750 | 750 | 750 | 750 | ||
L | mm | 1000 | 1000 | 1000 | 1250 | 1500 |
1250 | 1250 | 1250 | 1500 | 1750 | ||
1500 | 1500 | 1500 | 1750 | 2000 | ||
Table Diameter (D) | mm | 400 | 550 | 750 | 1000 | 1400 |
Max. Fixture Diameter (D1) | mm | 450 | 950 | 950 | 1450 | 1450 |
950 | 1450 | 1450 | 1700 | 1950 | ||
1450 | 1950 | 1950 | 1950 | * | ||
Rotation Max. Speed | rpm | 20 | 10 | 7 | 6 | 5 |
Rotation Index Time | s/180 degree | 2 | 3,5 | 4,8 | 4 | 6 |
Center Of Gravity Radial Offset | mm | ≤ 200 | ≤ 200 | ≤ 150 | ≤ 150 | ≤ 150 |
Tilt Axis Max. Speed | rpm | 10 | 8 | 6 | 5 | 4 |
Tilt Index time | s/90 degree | 1,5 | 2,2 | 2,7 | 3 | 3,5 |
Index Max. Speed | rpm | 8 | 8 | 6 | 5 | 5 |
Index Axis Time | s/180 degree | 6 | 6 | 6 | 8 | 8 |
Recommended Servo Motors | ABB, FANUC, KUKA ,MITSUBISHI, PANASONIC, SCHNEIDER, SIEMENS, YASKAWA | |||||
