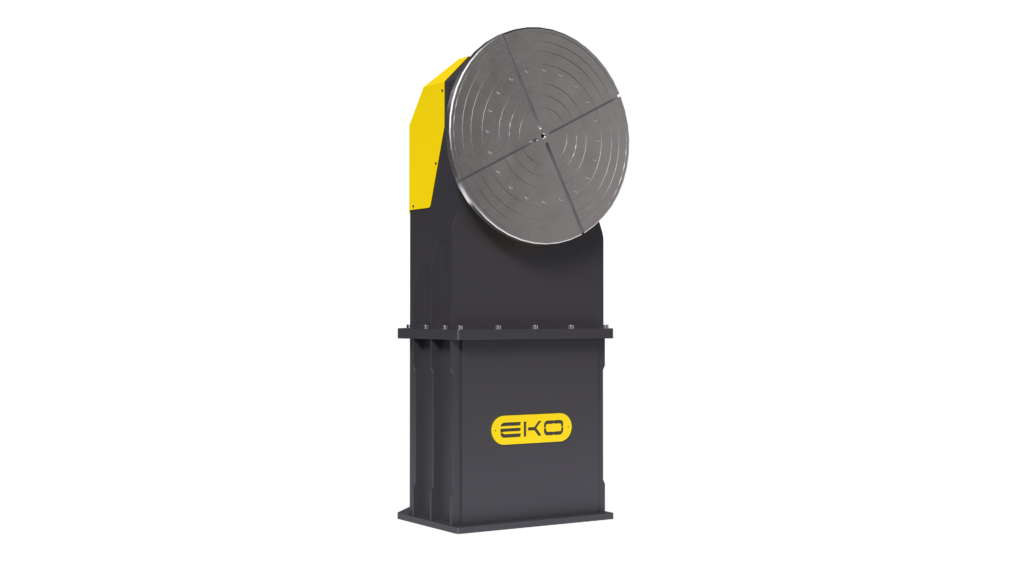

I Series

Two Axis Positioner

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical Data		RPSY-0100	RPSY-0300	RPSY-0500	RPSY-1000
Max. payload	kg	1000	3000	5000	10000
Height (H1)	mm	750	750	1000	1000
Height (H2)	mm	500	500	750	750
		750	750	1000	1000
		1000	1000	1500	1500
		1500	1500	2000	2000
		2000	2000	2500	2500
Index time	s/180 degree	2	2	2	3
Run-out	mm	0.1	0.1	0.1	0.1
Recommended Servo Motors				YASKAWA, FANUC, ABB, KUKA, ROBOMETA, OTC

T Series

Turntable

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical Data		RPSD-0100	RPSD-0300	RPSD-0500	RPSD-1000
Max. payload	kg	1000	3000	5000	10000
Height (H)	mm	750	750	750	750
		1000	1000	1000	1000
		1250	1250	1250	1250
		1500	1500	1500	1500
		*	*	*	*
Table Diameter (D)	mm	750	750	750	750
		1000	1000	1000	1000
		1230	1230	1500	1500
		1480	1480	2000	2000
		1980	1980	3500	2500
Index time	s/180 degree	2	2	2	3
Run-out	mm	0.1	0.1	0.1	0.1
Recommended Servo Motors				YASKAWA, FANUC, ABB, KUKA, ROBOMETA, OTC

P Series

P Type Two Axis Positioner

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical data		RPSE-0100	RPSE-0300	RPSE-0500
Max. payload	kg	750	1500	5000
Height (H1)	mm	750	750	1000
		1000	100	1250
		1250	1250	1500
		*	1500	1750
SLIDER LENGTH L2 (OPTIONAL)	mm	2	2	2
Run-out	mm	0.1	0.1	0.1
Recommended Servo Motors		YASKAWA, FANUC, ABB, KUKA, ROBOMETA, OTC

2H Series

Two Station Positioner

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical Data		RPH2-0100
Max. payload	kg	1000
Max. fixture length (L)	mm	1500
		1750
		2000
		2500
H	mm	750


		1000
		1250
		1500
D	mm	750
		1250
		1500
		*
Run-out	mm	0.1
Recommended Servo Motors	YASKAWA, FANUC, ABB, KUKA, ROBOMETA, OTC

L Series

Single Station Positioner

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical data		RPSL-0100	RPSL-0300	RPSL-0500	RPSL-1000
Max. payload	kg	1000	3000	5000	10000
Height (H)	mm	750	1000	1250	1500
		1000	1500	1500	1500
		1250	2000	2000	2000
		1500	2500	2500	2500
		1500	3000	3000	3000
H1	mm	250	250	250	250
		500	500	500	500
		750	750	750	750
		*	*	*	*
		*	*	*	*
L	mm	500	750	1000	1000
		750	1000	1250	1250
		1000	1250	1500	1500
		*	*	1750	*
Index time	s/180 degree	2	2	2	3
Run-out	mm	0.1	0.1	0.1	0.1
Recommended Servo Motors				YASKAWA, FANUC, ABB, KUKA, ROBOMETA, OTC

2L Series

Two Station Positioner

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical Data		RPL2-0100	RPL2-0300	RPL2-0500	RPL2-1000
Max. payload	kg	1000	3000	5000	10000
H	mm	750	1000	1250	1250
		1000	1500	1500	1500
		1250	2000	2000	2000
		1500	2500	2500	2500
		2000	3000	3000	3000
LMAX	mm	250	250	250	250
		500	500	500	500
		750	750	750	750
		*	*	*	*
		*	*	*	*
L1	mm	750	750	2500	2500
		1000	1000	1000	1000
		4000	1000	1250	1250
		1250	1250	1500	1500
		*	*	1750	*
Index time	s/180 degree	2	2	2	3
Run-out	mm	0.1	0.1	0.1	0.1
Recommended Servo Motors				YASKAWA, FANUC, ABB, KUKA, ROBOMETA, OTC

U Series

Dual Axis Positioner

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical Data		RPDC-0100	RPDC-0300	RPDC-0500	RPDC-1000
Max. payload	kg	1000	3000	5000	10000
Height-1 (H1)	mm	1250	1250	2000	2000
		1500	1500	2250	2250
		2000	2000	2500	2500
		2500	2500	3000	3000
		*	*	3500	3500
Height-2 (H2)	mm	250	250	250	250
		500	500	500	500
		750	750	750	750
		1000	1000	1000	1000
		1250	*	*	*
L1	mm	2500	2500	2500	2500
		3000	3000	3000	3000
		3500	3500	3500	3500
		4500	4500	4500	4500
Index time	s/180 degree	2	2	2	3
Run-out	mm	0.1	0.1	0.1	0.1
Recommended Servo Motors				YASKAWA, FANUC, ABB, KUKA, ROBOMETA, OTC

C Series

Two Axis Positioner

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical Data		RPSC-0100	RPSC-0300	RPSC-0500
Max. payload	kg	1000	3000	5000
D	mm	750	1000	1250
		1000	1500	1500
		1250	2000	2000
		1500	*	*
		*	*	*
L	mm	1250	1250	1250
		1500	1500	1500
		2000	2000	2000
		2500	*	*
		*	*	*
H	mm	1250	1250	1250
		1500	1500	1500
		1750	1750	1750
		2000	*	*
Index time	s/180 degree	2	2	2
Run-out	mm	0.1	0.1	0.1

2C Series

Three Axis Positioner

Standard Features

Precise movement thanks to its robust and ergonomic body structure
Use of cycloid headless reducer
Full compatibility with different robot systems such as ABB, Fanuc,
Kuka and Yaskawa
Ease of use with external servo motor and PLC control
Special manufacturing according to desired dimensions and weights according to customer demand

Technical Information

Technical Data	D1	D2	H	Max. fixture length (L)
RPW2-0750	750	1850	1025	1500-2000-2500-300
RPW2-1000	1000	2350	1275
RPW2-1500	1500	3500	1850
RPW2-2000	2000	4500	2350
Index time	s/180 degree	2
Run-out	mm	0.1
Recommended Servo Motors		YASKAWA, FANUC, ABB, KUKA, ROBOMETA, OTC
